posted
Since the O and G aren't the same ovals, I'm guessing, waste the paper and make a pattern. Price....ain''t enough money. Are you swinging down from the top or going up from the ground? Kathy thought maybe you could project off a drone. Let us know how your doing this foolishness and stay safe.
-------------------- Tom & Kathy Durham House Springs, MO Posts: 654 | From: House Springs, MO | Registered: Apr 1999
| IP: Logged |
Change the 's to " and I'd do it for around $400!!!!!
-------------------- Dave Grundy retired in Chelem,Yucatan,Mexico/Hensall,Ontario,Canada 1-519-262-3651 Canada 011-52-1-999-102-2923 Mexico cell 1-226-785-8957 Canada/Mexico home
posted
I say make a Pounce Pattern. I am curious to know what Paint you will be using. According to the 1990 Official SignWriters Pricing Guide, it said $2,100. I would be comfortable charging $6,400 providing the patterns & painting.
-------------------- Kevin Betz KB Sign Company 21321 Ulrich Clinton Township, MI 48036 kbsigncompany@att.net Posts: 229 | From: Detroit, MI | Registered: Sep 2003
| IP: Logged |
posted
Gosh oh mighty, I was I was closer. I'd sell tickets. I'd have a big banner that reads, "Watch dis fool paint a sign!" Boy oh boy, If I was dong that job,,,,the prep alone would kill me. When it's all done, you have to post a picture.
-------------------- Signs by Alicia Jennings (Mudflap Girl) Tacoma, WA Since 1987 Have Lipstick, will travel. Posts: 3812 | From: Tacoma, WA. U.S.A. | Registered: Dec 1999
| IP: Logged |
posted
It may be a little longer before it is finished. I am following the contractor that painted the tank and they are providing the rigging. I was planning to start Monday morning, and they are planning to set the rigging Monday morning. It will take about 6 hours to get everything set, and now they are calling for rain Tuesday thru Thursday.
Rigging will be a 2' x 32' stage between 2 sky climbers. I will have a helper to run one sky climber while I run the other one. They have to run together to keep from losing the stage.
The paint will be a 2-part paint with a pot life of about 30 minutes. I will throw brushes away after each mix. Even MEK will not clean this stuff out of a brush.
-------------------- Don Hulsey Strokes by DON signs Utica, KY 270-275-9552 sbdsigns@aol.com
I've always been crazy... but it's kept me from going insane. Posts: 2273 | From: Utica, KY U.S.A. | Registered: Jan 1999
| IP: Logged |
posted
How would I handle it? I'd pass instantly. You might be the only one I know capable of doing this. I used to know a father son team over in Arkansas that did this sort of work but the father has to be dead and the son up in years. The size of the logo and the fact it is on a curved surface and the letters are round compound the difficulty.......nevermind it's way up in the air.
-------------------- George Perkins Millington,TN. goatwell@bigriver.net
"I started out with nothing and still have most of it left"
posted
Will you work a three foot section across the top and then lower the stage and work your way down? I'd like to approach it working from the middle out, but that involves moving the rigging way too much. I would also make a pattern of half the O from 10' tyvek perforated with an electro pounce and big holes. All the curves could be on one pattern and identified. You could go over the pattern with a rattle can to mark your lines. The logo at that height could probably be cut clean enough with rollers. I'd think the price would be over six grand for the painting.
-------------------- The SignShop Mendocino, California
Making the simple complicated is commonplace; making the complicated simple, awesomely simple, that's creativity. Charles Mingus Posts: 6712 | From: Mendocino, CA. USA | Registered: Nov 1998
| IP: Logged |
You are more than welcome to come sell tickets, and take pictures. I am looking for someone to take pics from start to finish on this one.
George,
It is not quite as curved as you might think. The 32' stage will be less than 2' from the tank on each end.
Rick,
The half pattern IS a good idea, but you would have to make one for the G also. If you look close the outside of the G is slightly elongated to the right.
-------------------- Don Hulsey Strokes by DON signs Utica, KY 270-275-9552 sbdsigns@aol.com
I've always been crazy... but it's kept me from going insane. Posts: 2273 | From: Utica, KY U.S.A. | Registered: Jan 1999
| IP: Logged |
posted
I tried to make it clear...I'd make one pattern that would have both letters on it. It would be the right half of the O and the right half of the G. The pattern can be flipped over for the left side of the two letters that are the same.
-------------------- The SignShop Mendocino, California
Making the simple complicated is commonplace; making the complicated simple, awesomely simple, that's creativity. Charles Mingus Posts: 6712 | From: Mendocino, CA. USA | Registered: Nov 1998
| IP: Logged |
posted
Wow. Working that high means high price. Considering the size of the logo and the height, I would have bid it at 6500, and extra for the crane to get up there. I did a 40' from the bottom TRUCK CENTER on a brick wall, nicely painted with little mortar recess using a bucket...maye 20 foot wide, two lines with outline...ten years ago, for $4000 plus the bucket. Planned on it taking a week and banged it out in two days using Metalatez SW and 3" & 9" rollers. That was a nuce week, but the bucket was a bit scary upthat high in the wind. BEE CAREFUL!
-------------------- Preston McCall 112 Rim Road Santa Fe, New Mexico 87501 text: 5056607370 Posts: 1552 | From: Santa Fe, New Mexico | Registered: Nov 1998
| IP: Logged |
posted
Mark it on a mesh, hang the mesh, mark through the mesh working from bottom up, cut 3 foot of the mesh and paint, then repeat upwards. Gaffa or magnets.
-------------------- Stein Saether GullSkilt AS Trondheim Posts: 1183 | From: Trondheim Norway | Registered: Nov 1998
| IP: Logged |
"THE U.S. BUREAU OF ENGRAVING AND PRINTING - U.S. CURRENCY"
( According to the Federal Reserve, there is more than $1 trillion worth of Federal Reserve notes in circulation. )
THESE PEOPLE HAVE NOT PRINTED ENOUGH MONEY YET, NOR WILL THEY,EVER,TO PAY ME TO GET ON A STAGE OR WHATEVER YOU ARE GOING TO GET ON, TO DO WHAT YOU ARE INTENDING TO DO.
posted
You are kinda right Stein, but I have never had a fear of heights, but I DO have a major respect for them from 4' on up. I wish I had left out the part about the height... just How would you do this layout and paint at this size on a painted metal surface? Actually it turns out that the 85' is to the top of the tank wall, so I won't be as high as I originally thought.
The rigging is finally set, and tomorrow's temp is supposed to be in the 50s, so it looks like I will get to start in the morning.
I should have a description with pics by the end of the week.
-------------------- Don Hulsey Strokes by DON signs Utica, KY 270-275-9552 sbdsigns@aol.com
I've always been crazy... but it's kept me from going insane. Posts: 2273 | From: Utica, KY U.S.A. | Registered: Jan 1999
| IP: Logged |
posted
Sure looks fun, Don. Having others provide the staging and paint sure reduces your responsibility and the anxiety level as long as you're working with people you can trust your life to. I assume that you've done some testing with the two part paint and seeing that they don't eat up rollers? I hope you have no breeze to transport a drip 300 feet away to where a Mercedes is parked.
-------------------- The SignShop Mendocino, California
Making the simple complicated is commonplace; making the complicated simple, awesomely simple, that's creativity. Charles Mingus Posts: 6712 | From: Mendocino, CA. USA | Registered: Nov 1998
| IP: Logged |
posted
I quoted a job like that for a water tower when I had my shop in Georgia. I bid $3,682,475.00 the city manager wanted to know why so much money. I just explained to him how I had to drain all the water, hire a big arse crane company, cut the legs and lay it down on its side. then, $14,235.00 to make a vinyl paint mask, application tape and 12 new plotter blades. a crew of ten to install the mask and roll out the colors. $685.00 disposal fee at the landfill for the used mask and application tape. then the crane crew comes back and stands the tower back up and the welders fasten the legs back into position and refill it.
oddly enough, I didn't get the job.
.
.
.
-------------------- John Smith Kings Bay Signs (Retired) Kissimmee, Florida Posts: 816 | From: Central Florida - The Sunshine State | Registered: Jan 2000
| IP: Logged |
One of the guys that set the rigging is working up there with me, so that helps a little on the trust part, plus I went up and examined everything myself. The paint does destroy brushes, roller covers, and frames, but they last long enough to finish each mix of paint. Even if we were only 30' up, a drop of this stuff would dry before it hit the ground straight down.
John,
I have never gone quite that high before, but I have tripled my price in an effort to avoid a job, and still got them.
They did not finish the rigging until 1:00 today so all we finished was the layout. We plan to start painting at 11:00 tomorrow to allow the temp to rise a little before painting. I will try to get pics and a full description posted by the end of the week.
-------------------- Don Hulsey Strokes by DON signs Utica, KY 270-275-9552 sbdsigns@aol.com
I've always been crazy... but it's kept me from going insane. Posts: 2273 | From: Utica, KY U.S.A. | Registered: Jan 1999
| IP: Logged |
Making the simple complicated is commonplace; making the complicated simple, awesomely simple, that's creativity. Charles Mingus Posts: 6712 | From: Mendocino, CA. USA | Registered: Nov 1998
| IP: Logged |

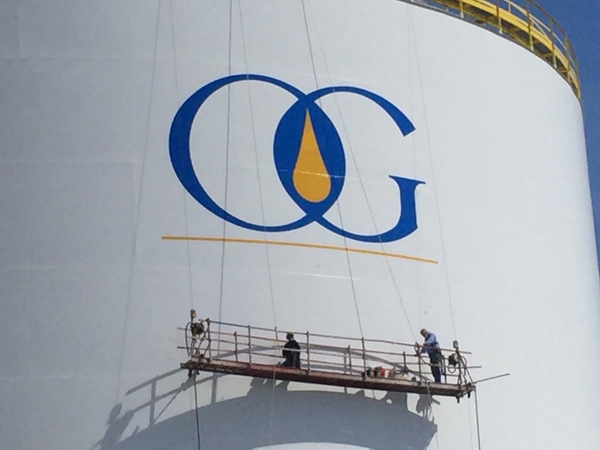

We painted the O, G, Oil Drop, and stripe On Tuesday(2.5 hrs). It rained all day Wednesday. Thursday we went up in 15 mph wind and 2nd coated, and touched up scrapes from the stage(1 hr-45 min). I am using a pounce pattern for the OWENSBORO GRAIN and a 30mph gust of wind took a good portion of it somewhere in Indiana. This tank is about 300 yds from the river. I made a new pattern yesterday afternoon(1.5 hrs). Today we have 15-20 mph winds so we are planning to try again tomorrow.
I was going to post pics and a description today, but the Letterville album will not accept my pics, even after downsizing and lowering resolution. Dave Grundy is going to upload them to another album, and then I will get everything posted. I may even have a completed shot by then.
-------------------- Don Hulsey Strokes by DON signs Utica, KY 270-275-9552 sbdsigns@aol.com
I've always been crazy... but it's kept me from going insane. Posts: 2273 | From: Utica, KY U.S.A. | Registered: Jan 1999
| IP: Logged |
I studied drafting in high school, and I did all of my older brothers drawings when he took it in college.
This is like a really big drawing board.
I first brought the .jpg image into my Gerber sign making program. I have the font for OWENSBORO GRAIN so that part was easy. It took 11 minutes to redraw the OG with the oil drop. I then created a bunch of circles and made them match the needed radii.

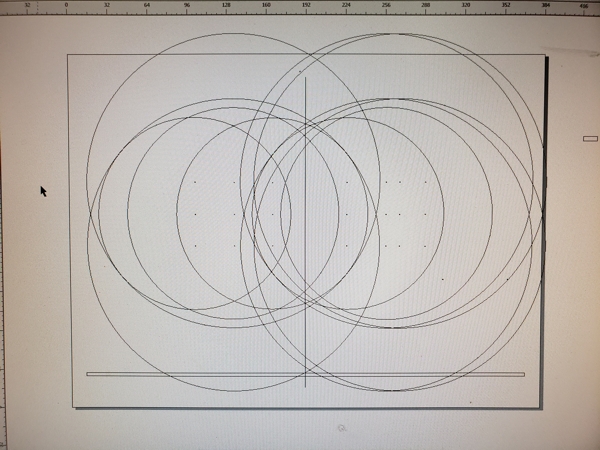

Leaving all of the circles in place, I created a bunch of .050 circles and centered them to each of the larger circles. The size of the larger circles gave me the radius that I needed for each one, and the smaller circles created the center points. The insides of the O and G are actually round so that was easy. The center points for the top and bottom of the G actually required 4 points, 2 were 11 to the right of the first 2. I then sat down at my old drafting table and created a full drawing of everything except the lowest copy to make sure all of my dimensions would work together.

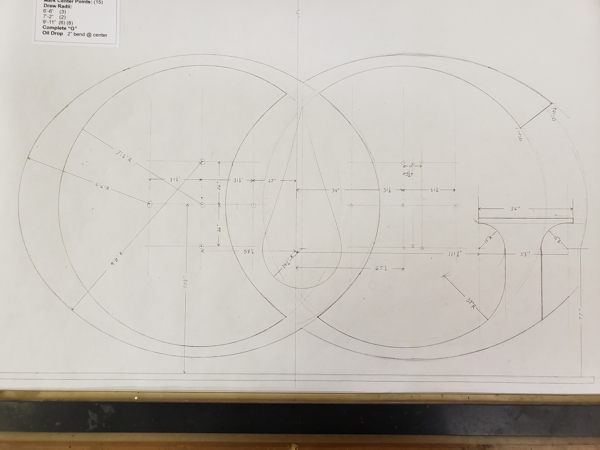

This drawing is at Ύ = 1 scale, and took less than 30 minutes to draw. I took the drawing (with dimensions shown) and an architects scale on the stage.

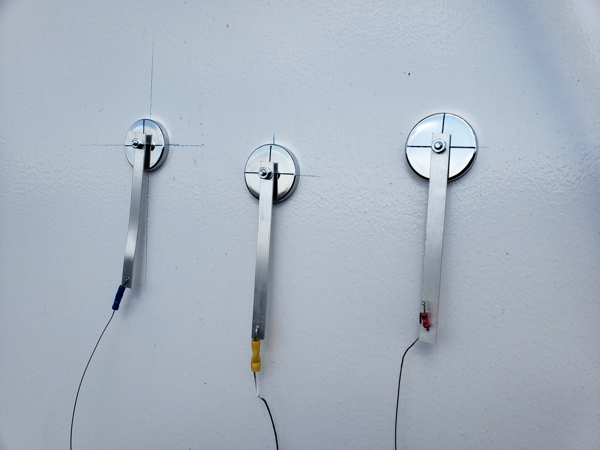

I created compasses by using round magnets with a metal cover and a hole in the center. I ran a screw through them and fastened a 6 piece of .063 x .5 aluminum flat bar. I then fastened picture hanging wire to each piece of flat bar, and added 3/8 flat washers as needed for each radius.
Set the magnet on the center point, stick a Sharpie in a washer, and youre ready to draw a circle. I made 4 compasses to avoid moving the stage so much. Since the top and bottom arcs were at 9-11 radius I would have to set the magnets and then move the stage to actually draw the arc. There were 4 of these arcs at the top and 4 at the bottom.
As far as painting, anything below 100 I like to cut it in, then use rollers when possible so the O, G, oil drop, and stripe were cut in with a 2 sash tool, and filled with 4 rollers. We completed this much the first day of painting.

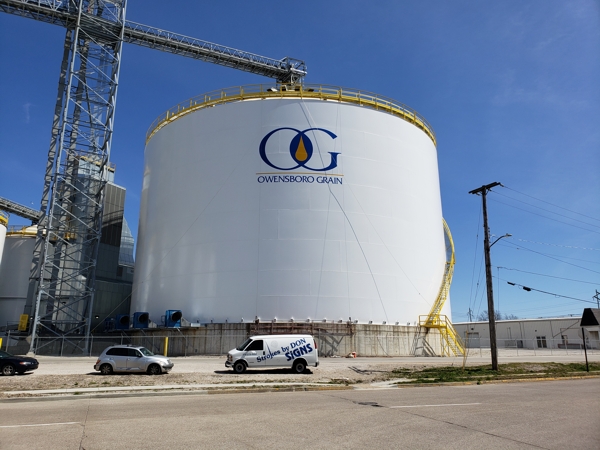

Dave Grundy has been nice enough to upload all of these pictures for me, and I just sent him the final shot. I will get it posted when he sends me the link.
The OWENSBORO GRAIN is 32" x 29' and I made a pounce pattern for that. It took 1.5 hrs to make the pattern and almost 2 hrs to paint it with a 2" sash tool. ( For those that don't know that is an angled brush that house painters use.)
I had painted this same logo on another tank in 1997 so I knew how I was going to do it, but for some reason, I did not keep my first drawing and compasses for 22 years.
Hope everybody enjoyed playing with this.
-------------------- Don Hulsey Strokes by DON signs Utica, KY 270-275-9552 sbdsigns@aol.com
I've always been crazy... but it's kept me from going insane. Posts: 2273 | From: Utica, KY U.S.A. | Registered: Jan 1999
| IP: Logged |
-------------------- Dave Grundy retired in Chelem,Yucatan,Mexico/Hensall,Ontario,Canada 1-519-262-3651 Canada 011-52-1-999-102-2923 Mexico cell 1-226-785-8957 Canada/Mexico home
posted
Nice job Don. Im quoting on an elevator job right now. There is definitely a premium on high work. Ill be using pounce patterns. Two logos about 25x25
posted
Beautiful job Don and it officially makes you the the OG Original Gangster of Sign Painting.
-------------------- Signs by Alicia Jennings (Mudflap Girl) Tacoma, WA Since 1987 Have Lipstick, will travel. Posts: 3812 | From: Tacoma, WA. U.S.A. | Registered: Dec 1999
| IP: Logged |
posted
Thanks everybody, and YES Dennis, I will keep them this time just in case. Actually I kept them for almost 20 years the first time, then one day while cleaning the shop I decided it still looked good enough that I would not be doing it again.
-------------------- Don Hulsey Strokes by DON signs Utica, KY 270-275-9552 sbdsigns@aol.com
I've always been crazy... but it's kept me from going insane. Posts: 2273 | From: Utica, KY U.S.A. | Registered: Jan 1999
| IP: Logged |
posted
Wonderful how you brought us through this project with you. I've been involved daily just thinking about it and checking in for your progress reports. If you don't mind, how close were we in the financial projections?
-------------------- The SignShop Mendocino, California
Making the simple complicated is commonplace; making the complicated simple, awesomely simple, that's creativity. Charles Mingus Posts: 6712 | From: Mendocino, CA. USA | Registered: Nov 1998
| IP: Logged |
posted
Oh yeah, most of you were pretty close. It was 7000.00 for my part. I am not sure what the contractor charged for the rigging, and my helper and ground man, and paint.
-------------------- Don Hulsey Strokes by DON signs Utica, KY 270-275-9552 sbdsigns@aol.com
I've always been crazy... but it's kept me from going insane. Posts: 2273 | From: Utica, KY U.S.A. | Registered: Jan 1999
| IP: Logged |
posted
Don, did you complete the layout for the OG and then start painting or did you just paint the section that you could reach and move your stage and layout and paint the next section? Also, I assume you worked from the top down and never had to run wheels over the part you've just completed? How did you insure that your magnets wouldn't move if a line snagged on the stage or your leg?
-------------------- The SignShop Mendocino, California
Making the simple complicated is commonplace; making the complicated simple, awesomely simple, that's creativity. Charles Mingus Posts: 6712 | From: Mendocino, CA. USA | Registered: Nov 1998
| IP: Logged |
![[Rolling On The Floor]](graemlins/rolf.gif)
![[Wink]](wink.gif)
Actually I kept them for almost 20 years the first time, then one day while cleaning the shop I decided it still looked good enough that I would not be doing it again.
