I posted an introduction to this project over on the main page yesterday and received approval from the President of Master Lock today to share images and an outline.
About 8 weeks ago, the President of Master Lock (where I am employed as a Model Maker) asked me to design a mural for a conference room that was going to receive a massive makeover.
At that time the room was used for training sessions and had a 3 layered floor, can lights with grid ceiling and 3 rows of stadium seating along with tables facing the front of the room. The back wall is also curved back. I snapped this photo after the seats were removed.
The President's name is John Heppner and he had a general direction in mind for the room but asked me to come up with a few concepts and we'd go from there. The room was to be used as a New Innovation meeting space. His only guidelines were that it had to be futuristic and high-tech looking. We bounced around a few concepts and ended up with one that was based off a very large printed circuit board. He also suggested including 3-D elements in the mural.
We decided one of the 3-D elements would be a 52" touch-screen monitor inset in the center of the wall. There would also be two LED backlit panels which would display graphics related to the theme of the room. And then there were to be two 27" monitors set into the wall on either side. There was also talk of doing an array of LED bulbs sunk into the wall at random points.
Here is the finished rendering created with Adobe Illustrator...
a detail shot
I wanted the first layer of art to look as if you were looking through a semi-transparent printed circuit board. So I started masking off the signal traces (conductive pathways) or shall we just call them electrodes? I used gerber mask for all the circles (thanks Gary) and taped off the rest using 3/4" masking tape.
Because the wall has a curved surface, projecting was a bit of a challenge. My only option was to split the art up in 5 sections and line up each section as I went across the wall. Because of the distortion, I then had to locate the angles while it was projected and redraw all the straight lines with a level after the projector was turned off.
This is the wall after I airbrushed over the masking with black and painted the atlas by hand. By the way, the wall is just over 9' tall and 41' wide and was painted with Nova Colors over a latex base.
Posted by Dale Manor (Member # 4858) on :
Now comes the fun part!
The second layer of signal traces were to be painted in medium pearl blue. I put down a guide line of 7/8" masking tape where the paint would be going. Then I used blue painters tape on either side of the guide line as a mask and peeled off the guide tape.

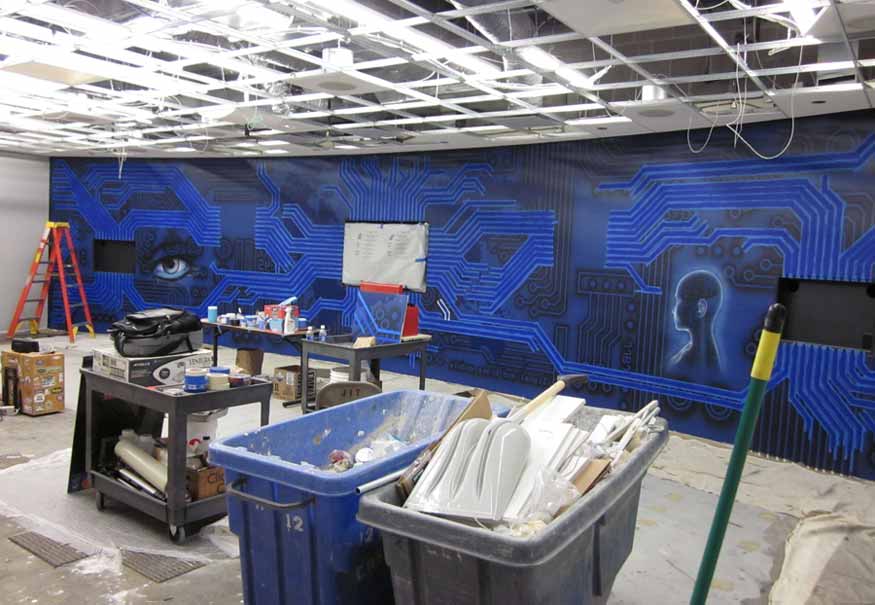

17 hours later and 1000 ft. of masking tape and I was ready to paint!
Then brushed on a couple of coats of the blue pearl
While I was busy with that, I had my fellow model makers EDM wire cut, and prep about 1000 pieces of polished stainless steel and brass "connectors". The stainless was used to simulate solder joints and all the weld pins around the "Processors". I also fabricated a couple of smaller "processor chips" to add to the wall. Don't mind the numbers...they are just random? These were made of painted HDU and Stainless steel.
This photo shows the metal elements in place and 2 of the 4 iPads that ended up replacing the 27" monitors. John felt that the live information and touch screen of the iPads would better go with the theme of the room. The granite and metal tile as well as carpet is in place. Not to mention the great furniture that was purchased for the project.
And here is the completed room. The table is modular and the wood portions rotate around the smaller round tables to make it possible to put it in many different configurations. There are strings of LED lights inside the ceiling that can be programmed to change color and or stay any color you like.
A close up of one of the aluminum/stainless steel iPad stations...
And one more
